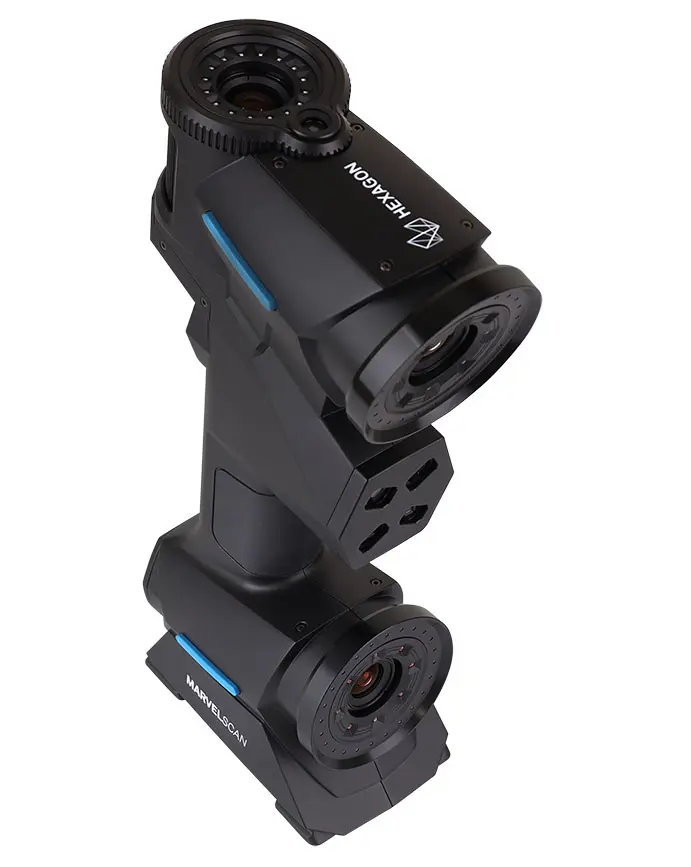

HEXAGON MARVELSCAN handheld 3D scanner
with EUMETROLOGY support
World-class metrology. Local expertise.
As an official HEXAGON partner, EUMETROLOGY provides advanced portable metrology solutions for manufacturing companies in Hungary.
We support our customers in selecting the right measurement system, arranging on-site demonstrations and successfully implementing the chosen technology. Based on the measurement task, production environment and required accuracy, our engineers help identify the optimal solution – from portable measuring arms, handheld 3D scanners and laser trackers to photogrammetry systems, optical gap measurement and automated inspection solutions.
World-class technology. Local engineering expertise. Solutions tailored to your measurement needs.
HEXAGON technology
Innovative, high-accuracy solutions built on more than 200 years of metrology heritage for a wide range of manufacturing and quality inspection applications.
Product portfolio
Portable measuring arms, handheld 3D scanners, laser trackers, photogrammetry systems, gap measurement systems and automated inspection solutions from a single technology provider.
Local engineering support
EUMETROLOGY experts support customers throughout the entire process, from system selection and demonstration to implementation, training and application support.
Complete freedom of movement
Bring the measurement directly to the component. MARVELSCAN allows hidden areas, deep cavities and difficult-to-access surfaces to be inspected flexibly. Its lightweight, ergonomic design and optional Wireless Scanning Module provide unrestricted operation in the metrology lab, on the shop floor or at external locations.
Less preparation, faster inspection
Integrated photogrammetry enables scanning without applying targets directly to the component. Using reference targets positioned in the surrounding environment significantly reduces preparation time, making the system particularly effective for large, delicate or repeatedly inspected parts.
Seamless multi-mode scanning
Switch between different scanning modes directly from the handheld unit. MARVELSCAN provides the right mode for rapidly capturing large surfaces, inspecting fine details at high resolution and measuring difficult-to-access areas. Data captured in different modes is automatically combined within a single point cloud or mesh.
Multi-mode scanning
MARVELSCAN offers three scanning modes that can be selected directly from the handheld unit to suit different measurement tasks.
Standard mode uses 22 blue laser lines for the rapid capture of larger surfaces.
Fine mode uses five parallel blue laser lines to capture small features at high resolution.
Line mode uses a single laser line for scanning deep or difficult-to-access areas.
Dynamic Scanning
Dynamic Scanning technology eliminates the need for time-consuming, rigid part fixturing. The workpiece can be rotated, repositioned or even held by hand during measurement, while the system continues to capture data within a unified coordinate system.
The integrated photogrammetry unit and external reference targets allow measurement without applying targets directly to the component. This reduces preparation time and provides a particularly efficient solution for large, sensitive or regularly inspected parts.
Target-free scanning
MARVELSCAN’s third camera can also be used as a standalone photogrammetry system. With standard photogrammetry targets, it improves volumetric measurement accuracy on medium-sized and large components, combining photogrammetry and 3D scanning within a single integrated system.
Integrated photogrammetry
With the optional Wireless Scanning Module, MARVELSCAN can be operated without movement-restricting cables. The lightweight belt-mounted unit provides both connectivity and power, giving the operator greater freedom during measurement.
Wireless scanning
Hole Flash Capture technology enables multiple circular holes and slotted features to be captured quickly and simultaneously, significantly accelerating common geometric inspection tasks.
Holes and slots
Features and benefits
Complete freedom of movement
Inspect hidden surfaces, deep cavities and difficult-to-access areas without the line-of-sight restrictions of an external tracking system.
Lightweight, ergonomic design
The scanner fits comfortably in the hand, while its low weight supports comfortable operation during extended measurement tasks.
Wireless Scanning Module
Optional wireless operation eliminates movement-restricting cables and provides greater freedom at the measurement location.
Truly handheld scanning
With Dynamic Scanning technology, the component can even be held in one hand while scanning with the other, eliminating the need for complex and time-consuming fixturing.
Target-free measurement on the component
Using an external target wall eliminates the need to apply reference targets directly to the workpiece, significantly reducing preparation time.
Integrated photogrammetry
The third camera can also be used for standalone photogrammetry and improves volumetric scanning accuracy when measuring larger components.
Three scanning modes
Standard, Fine and Line modes allow the data-acquisition speed and level of detail to be adapted to each measurement task.
Suitable for unstable environments
Dynamic Scanning supports stable and reliable data capture even in environments affected by vibration and movement.
Multi-size target recognition
The system recognises 3, 6, 12 and 16 mm targets, allowing preparation to be adapted to the component size and measurement task.
Change modes during measurement
Scanning modes can be changed directly from the handheld unit without interrupting the measurement process.
Automatic combination of measurement results
Data captured using different scanning modes is automatically combined within the same point cloud or mesh
Hole Flash Capture technology
Multiple circular and slotted features can be detected and captured quickly and simultaneously for more efficient inspection.
Instant visual feedback
The integrated LED system on the handheld unit provides immediate information about the scanning status, reducing the need to continuously monitor the computer screen.
Large standoff distance
Capturing data from further away makes it easier to reach deep cavities and internal surfaces. In automated applications, it also helps reduce the risk of collisions.
VDI/VDE certification
Certification in accordance with VDI/VDE 2634 supports the reliability and comparability of measurement results.
Automation ready
MARVELSCAN can be integrated into third-party robotic and automated inspection systems.
Try MARVELSCAN on your own component!
Our experts will help assess your measurement task and can demonstrate the system’s capabilities directly on your own workpiece at your site.
Request an on-site demonstration
